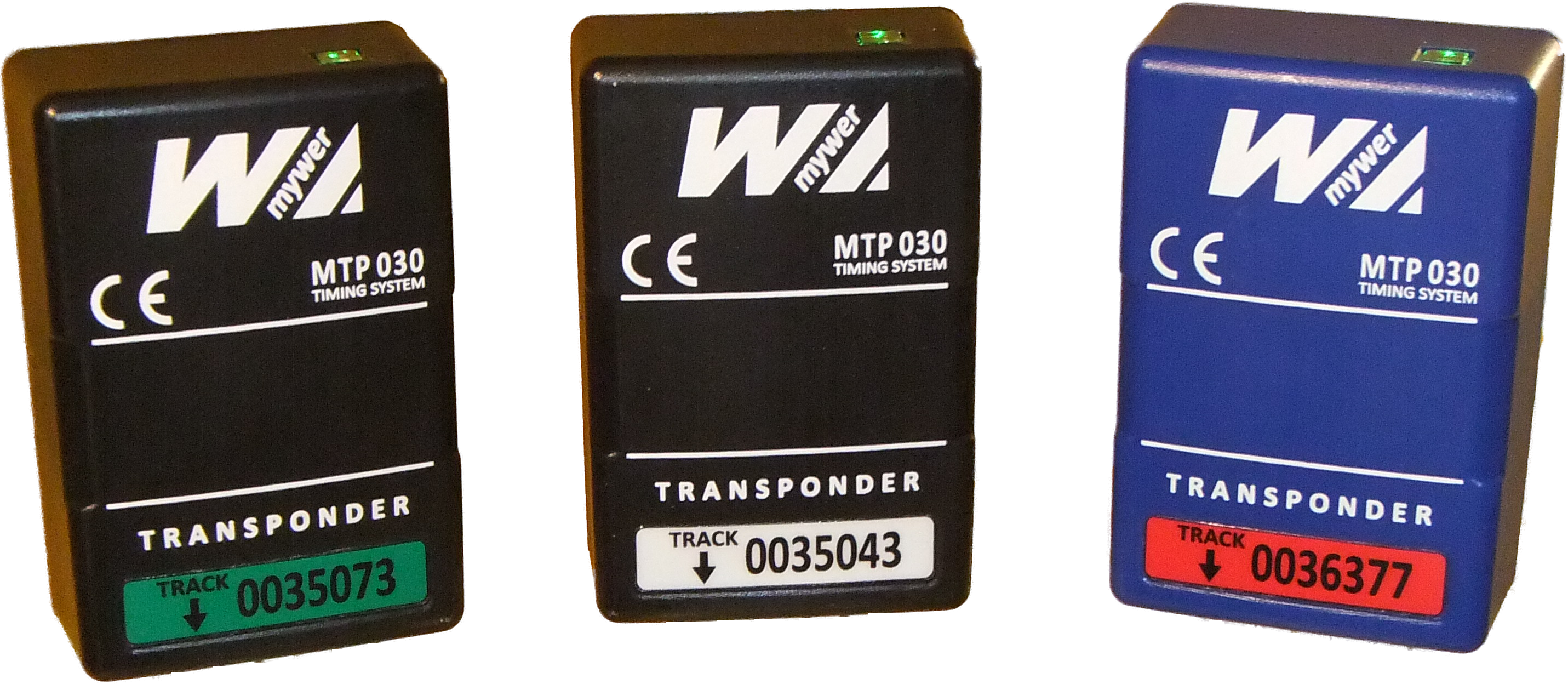

Transponder MyWer MPT 030

The MyWerMTP 030 transponder is available in three versions:

  • mod "G" for go-kart/ mini-bikes (max detction speed 150 kmh,max detection height 80cm)
  • mod "W" for moto-cross, motorbike, car (max detction speed 200 kmh, max detection height 160cm)
  • mod "R" for motorcycles, car, high-speed (max detction speed 300 kmh, max detection height 160cm)

MyWer MTP 030 is powered by a rechargeable battery that, once exhausted, can be replaced.
The MTP 030 transponder is particularly robust and is designed to resist mud, shock and vibration, and therefore, is ideal for motocross competition but can also be used for go-kart, motorcycles, cars, trucks, snowcross and more. Furthermore, it is compatible with all myWER reception systems.

You do not need an activation nor subscription of annual fees.
Technical data:
  • Power: rechargeable battery ni-mh 2,4V 1000mAh (replaceable)
  • Autonomy: 10 days approximately Mod "G" (always turned on for 6 hours a day)
  • Warranty: 3 years (except battery)
  • Dimensions: 48x24x73 mm
  • Operating temperature: -10/+70 °C


MyWer MTP 030C G Trasponder

The MyWer MTP 030C G trasponder is powered by a vehicle battery, current generator coil (Honda GX--- RT2 RDG4 engine or equivalent) power off switch (request information for compatibility).
The MTP 030C G transponder is particularly robust and is designed to resist mud, shock and vibration, and therefore, is ideal for go-kart and mini moto. Furthermore, it is compatible with all myWER reception systems.
You do not need an activation nor subscription of annual fees.


Technical data:
  • Power: direct with 9-56Vdc, 9-42Vac, current generator coil (max 50Vrms) or power off switch
  • Max comsumption: 0.05Watt (4mA @ 12Vdc)
  • Cable Lenght: 1.5mt
  • Maximum detection height (transponder vertically): 80 cm
  • Maximum speed on the detection loop: 150 kmh
  • Warranty: 3 years
  • Dimensions: 48x24x73 mm
  • Operating temperature: -10/+70 °C






Digital cable MyWer MRD

The digital cable MyWer MRD is a twisted-pair cable with insulating shield made from soft rubber with a length of 10..100 meters. The digital cable has two 12-pin metal connectors with an IP67 degree of protection, thanks to which you can join multiple cables up to a total length of 350 meters. Digital cable is also available in a reinforced version for heavy use.

Technical data:
  • Cable length: 10/25/50/100 mt
  • Cable diameter: 8 mm
  • Connectors: Lumberg 12 pin M/F
  • Connectors diameter: 20 mm
  • Cable protection degree: IP67


MyWer READER + DECODER

The MyWer reader MRD 140EL is a device to be installed, typically adjacent to the track, which directly connects the two wires of the detection loop. A digital multipole connector, present on the reader, is to be connected in a direct manner, or by means of extension cables, to the decoder. The reader MRD 140EL receives, decodes and processes the signal from the transponder (for example MTP 030) in order to retransmit it in real time via RS485, in digital form and with proprietary myWER protocol, to the decoder (for example, MCI 330) that can be to a distance of up to 350 meters (without signal repeater or additional power supply). The digital solution makes the myWER reader, unlike equivalent analog systems, particularly immune to interference and radio interference as it is a robust digital cable to "connect" the detection loop to the system and not an analog coaxial cable. In addition to making teh system immune to interference, it then limits the maximum distance. It is still possible, using appropriate accessories, to connect the reader to myWER detection loop with the common coaxial cable RG59 or equivalent dual shield MRD 12xP type. The reader MRD 140EL integrates a memory that records up to 2560 laps. The reader is coated entirely of resin, waterproof and housed in a plastic casing of reduced dimensions thus allowing the use and the 'installation, even in the most hostile environments.MRD 140EL is the ideal solution to satisfy every need such as kart rental center, motocross track, professional timekeeping services and more. It is therefore suitable for every type of motor racing such as, for example: motocross, enduro, go-kart, motorcycles, snowcross and more. The reader MRD 140EL is available in two versions: W / R.

You do not need an activation nor subscription of annual fees.

Technical data:
  • Power supply: from Decoder
  • Status messages: 2 LED
  • Messages of interference: 1 LED
  • Clock stability: +/- 5ppm
  • Watch accuracy: +/- 10mS/h
  • Maximum track width: mod. “W” 20 mt - mod. “R” 12 mt (with transponder series W/R)
  • Maximum number of simultaneously detectable transponder: 14
  • Maximum detection height: mod. “W” 200 cm - mod. “R” 150 cm (with transponder series W/R)
  • Internal memory: 2560 laps
  • Antenna sensitivity: electronic control, 10 levels
  • Addresable: 250 node
  • Warranty: 3 years
  • Dimensions: 30x55x100 mm
  • Operating temperature (on the ground): 0/+55 °C
  • Protection degree: IP67 (temporary immersion)


MyWer READER + DECODER

The MyWer decoder MCI 330 is equipped with a full front panel which consists of practical commands and function keys, indicator lights, a multifunction backlight display (diagnostic and setup) and a stereo headphone output jack; all this makes the MCI 330 a tool easy and intuitive to use. The rear panel has the place of two USB ports, a RJ9 connector to which you can connect a range of accessories and an output jack to which you can connect a manual button. Inside the MCI 330 is a rechargeable battery that, in the event of a blackout, the system provides an autonomy of up to 20 minutes. MCI 330 is powered by a small external power supply, or from any source of supply, between 10 and 15Vcc.

You do not need an activation nor subscription of annual fees.

Technical data
  • Supply and consumption: 10 to 15 Vdc - max 4 W
  • Status messages: 6 LEDs, backlight LCD display
  • Interface: 2 USB port optoisolated, 1 option port for accessories modules
  • Input: 1 for 3.5mm jack for manual button and synchronizer
  • Output: 1 for 3.5mm stereo jack headphone
  • UPS autonomy: 20 min. via internal rechargeable battery ni-mh 7.2V 700mAh (replaceable)
  • Warranty: 5 year (excluding batteries)
  • Dimensions: 105x145x50 mm
  • Operating temperature: 0/+55 ° C
